Permanent magnetic coupling is a new coupling that connects the prime motor with working machine by magnetic force of permanent magnet. It transfers mechanical energy without direct mechanical connection, but makes use of the interaction between rare earth permanent magnets. And the magnetic field can penetrate a certain space distance and materials to achieve mechanical energy transmission.

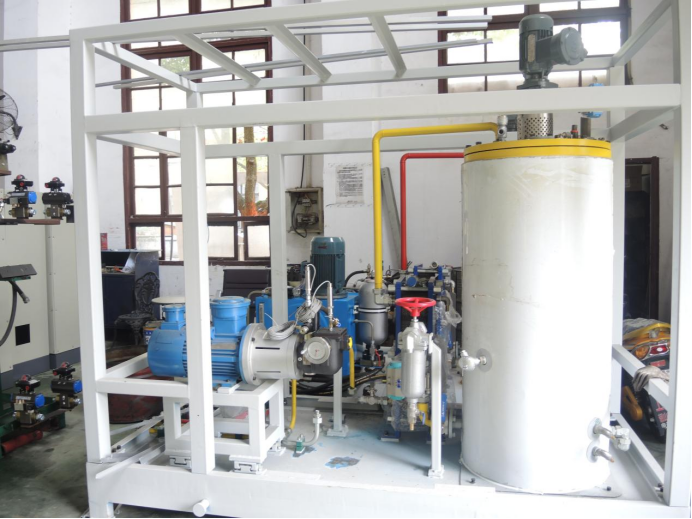

The magnetic coupling has completely solved the leakage problem which existed in dynamic sealing of certain mechanical devices. This product is widely used in the field of chemical, petroleum, food, marine fuel supply, vacuum equipment and other industries. It has formed a serious of products, particularly used with high-pressure polyurethane foam equipment. Such as Beijing Gelanrex A2VK and A7VK series, Italy Sam H1V6-30 series, Germany KRACHT series.
Magnetic agitator products derived from permanent magnetic coupling. In the use of industrial agitation or mixing technology, the agitator often installed at the bottom or side of the tank or autoclave body. So it is often divided into bottom-in agitator and side-entry agitator. The leakage problem of this agitator can be solved thoroughly when it is integrated with permanent magnetic coupling skillfully. It can achieve non-leakage by deploying magnetic drive seal device and making full use of static sealing structure. It is particularly suitable for the industry that has strict requirements on sealing.
The magnetic couplings produced by our company can be matched with the above products to achieve no leakage, static sealing, and can reduce maintenance, keep the workshop working environment clean, which has been recognized by the majority of users.
