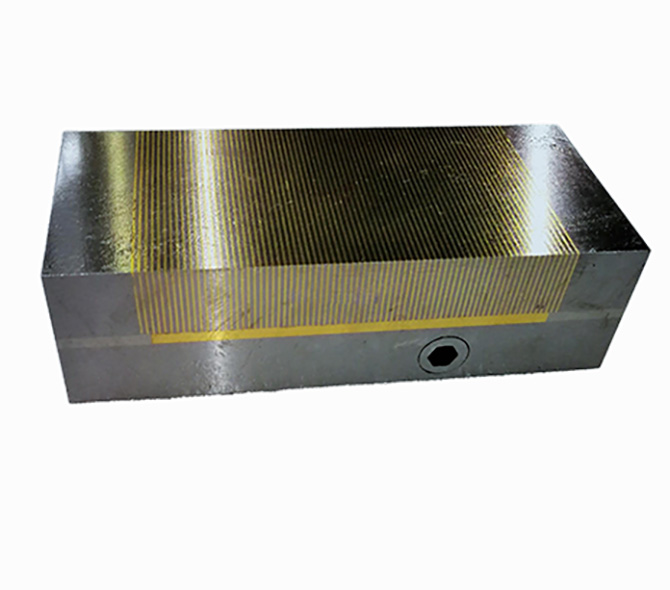

The shape of this magnetic chuck is rectangular.

Instructions：

Put the work piece on the suction table, and then insert the wrench into the shaft hole to turn clockwise 180°, the work piece can be sucked for processing.

The work piece is completed, the wrench can be inserted into the shaft hole to turn counterclockwise 180°, you can remove the work piece.

Features:

1. Sealed against dirt and liquid.

2. Removable handle.

3. Handle moves easily to turn chuck on and off.

4. Use powerful Rare Earth Neodymium Magnets inside.

5. Very fine spacing, uniform magnetic distribution, particularly for processing small thin parts.

6. Worktable precision no change while magnetizing and demagnetizing.

7.Use of ambient temperature: -40 ℃ -50 ℃.

8.It should be wiped clean before use to avoid scratching the surface, after using, the surface should be coated with oil to prevent corrosion.

9.Do not knock, to prevent magnetic reduction.

Apply:

The magentic chuck can be uesed for processing various magnetic conduction work pieces.

For surface grinder, tool grinder, EDM and other applications.

Thin and light weight work piece are ideally suitable because of fine-pitched magnetic poles.
